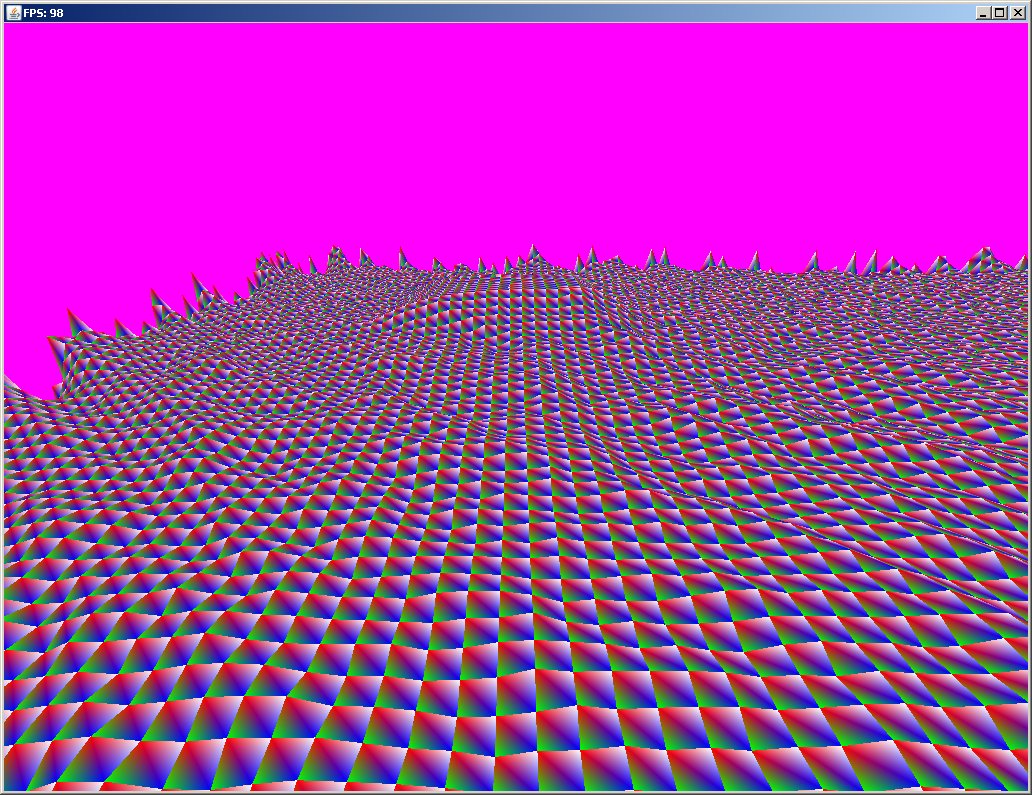

First heightmap render
Camera works now
Brush for editing implemented
Map Smoothing implemented

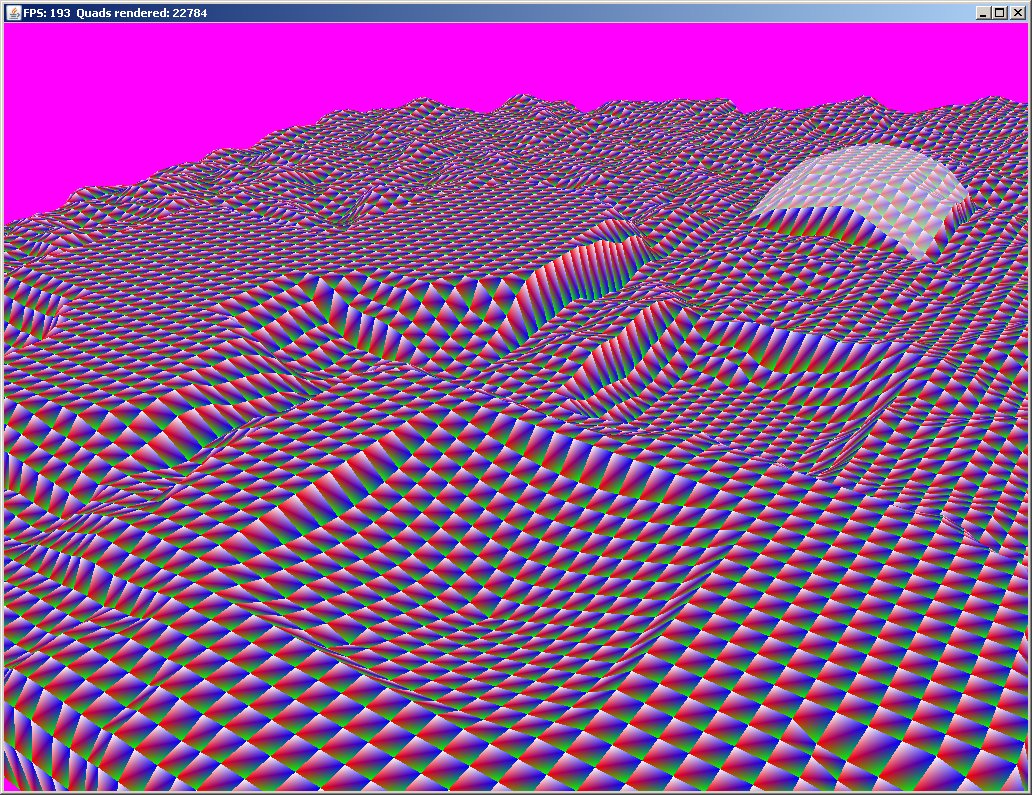

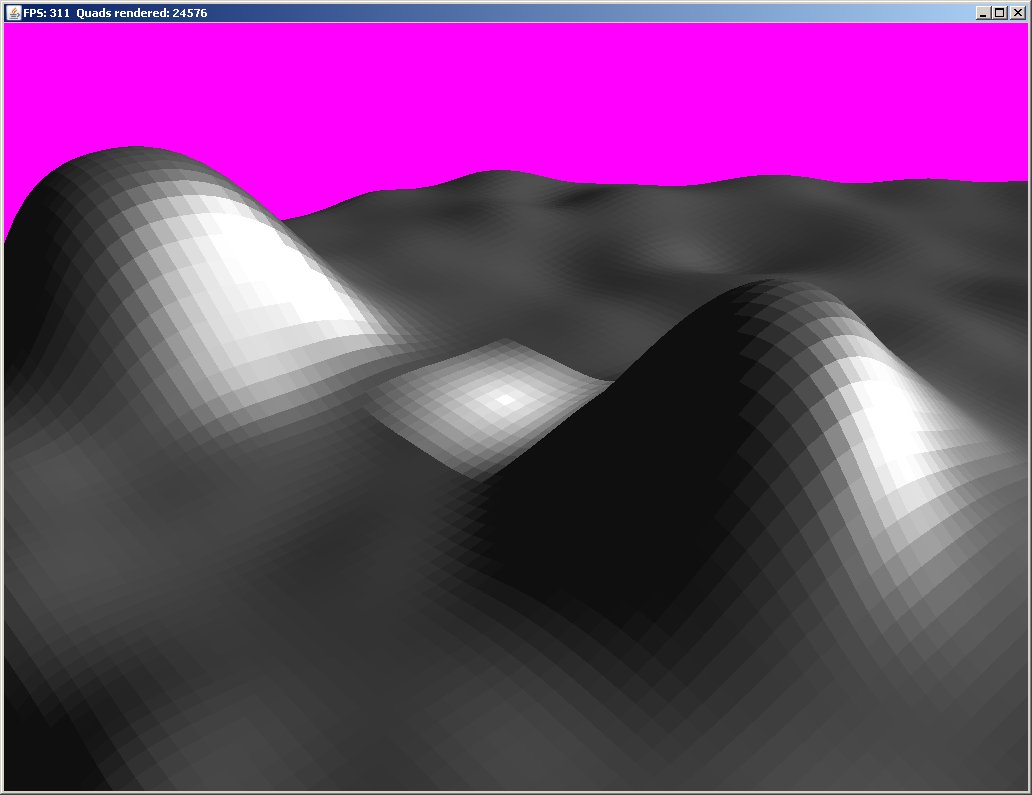

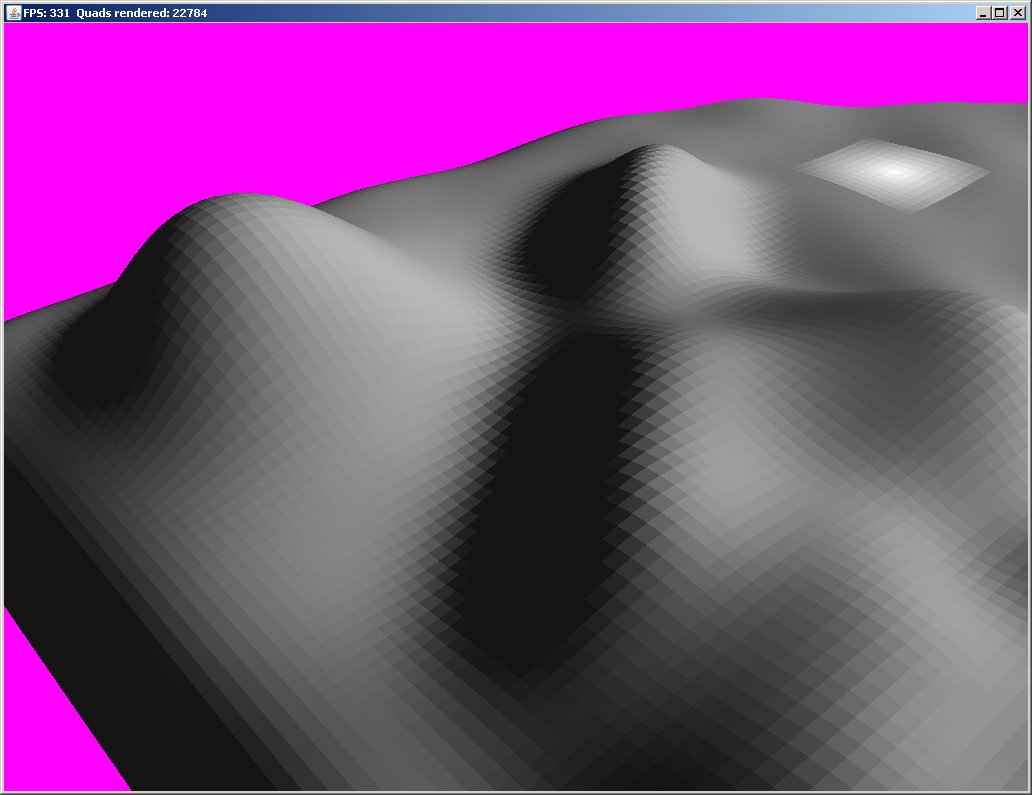

Lighting: Normals calculated per Quad
Lighting: Adjusted lighting direction

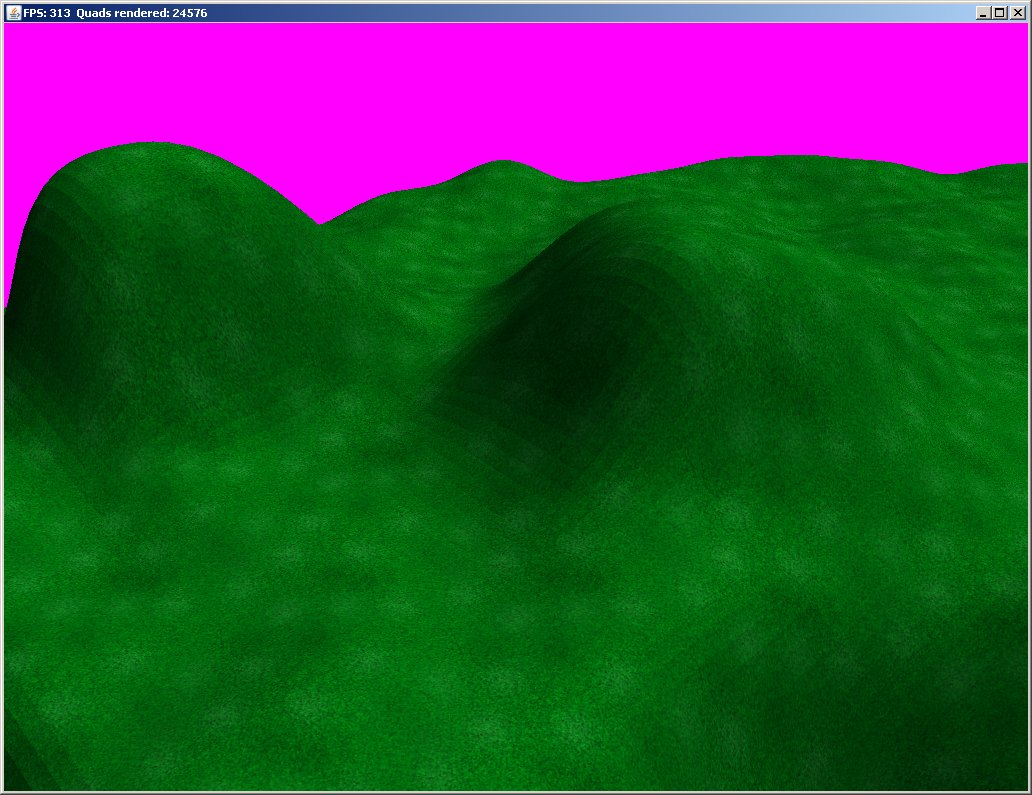

Simple ground texture applied

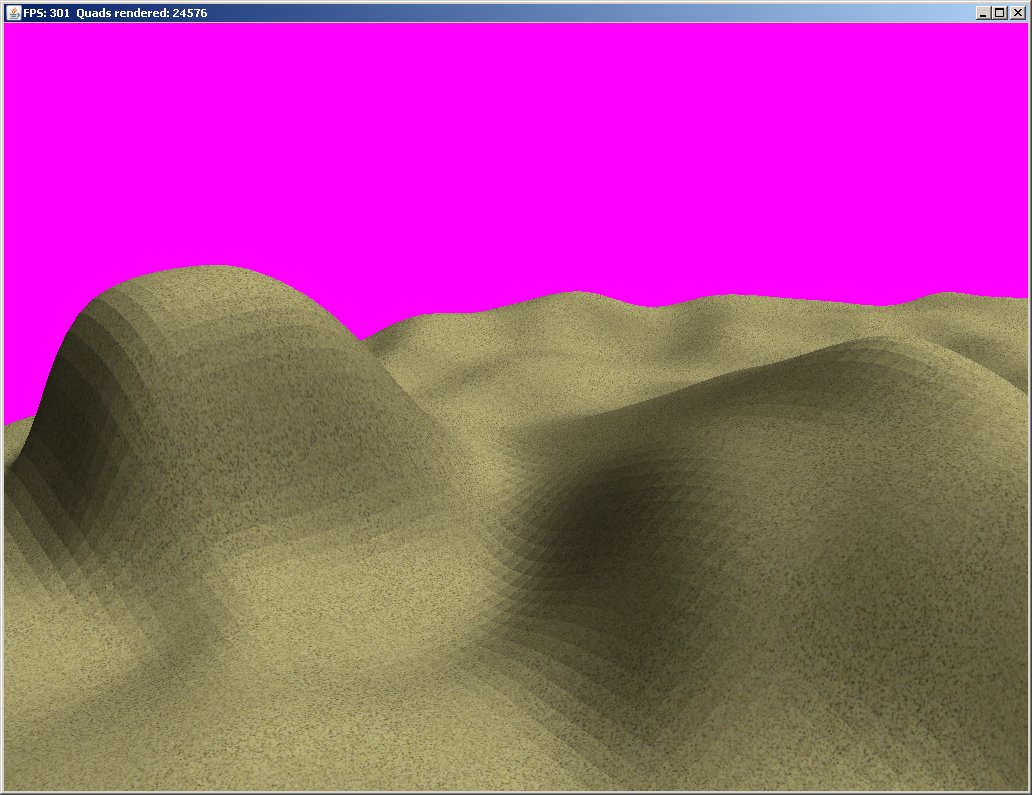

Changed ground texture to sand

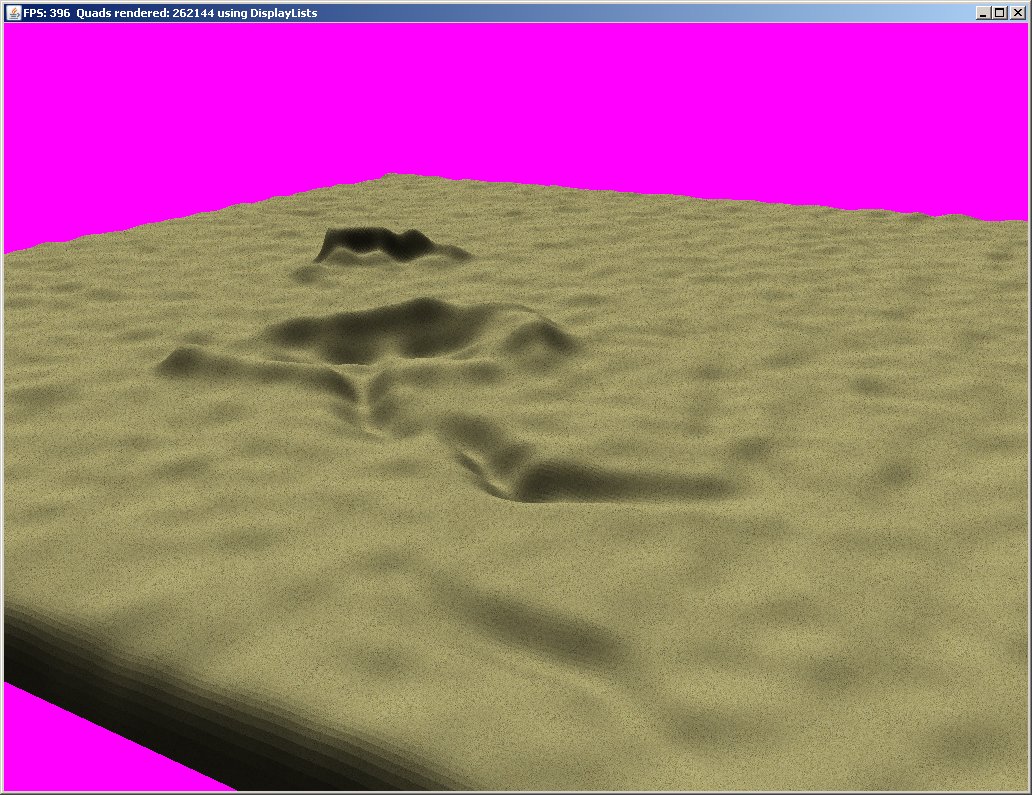

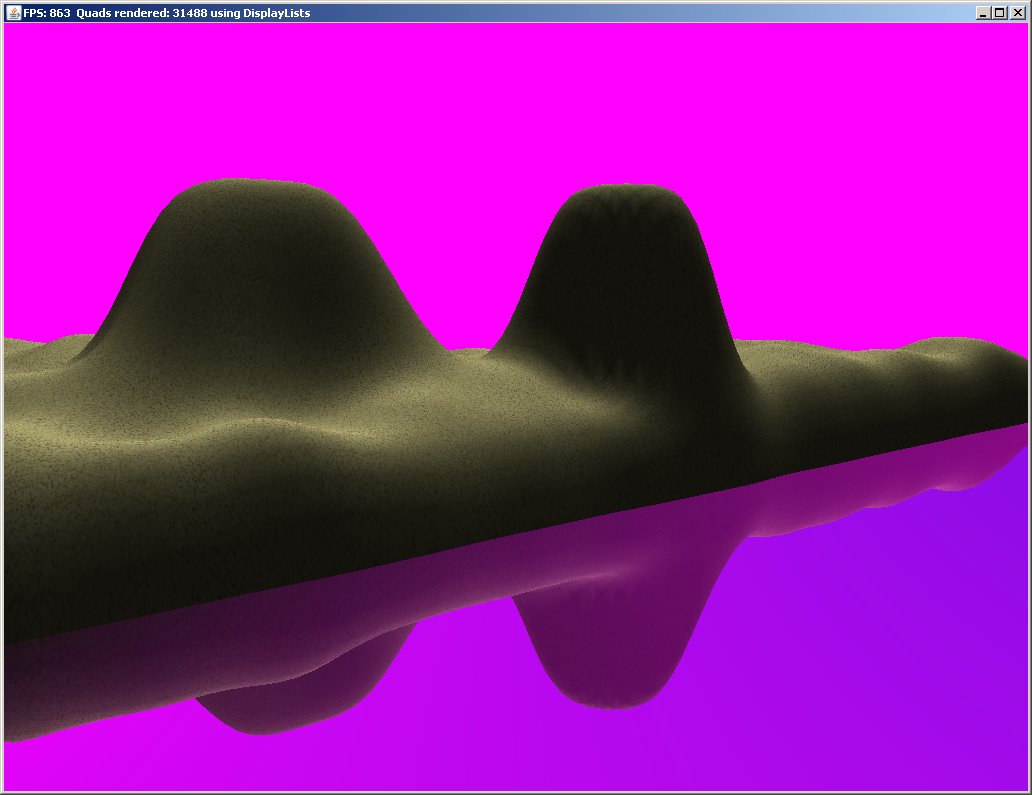

Switched to rendering via Displaylists. about 10x speedup. Whole map renderable.

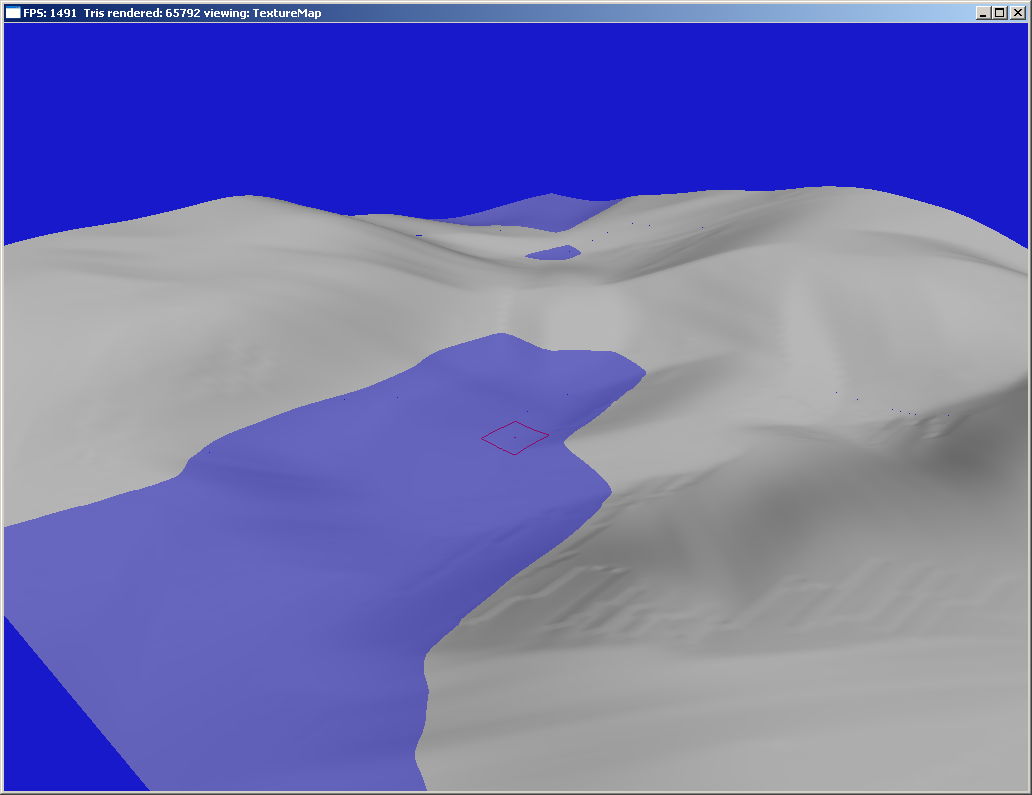

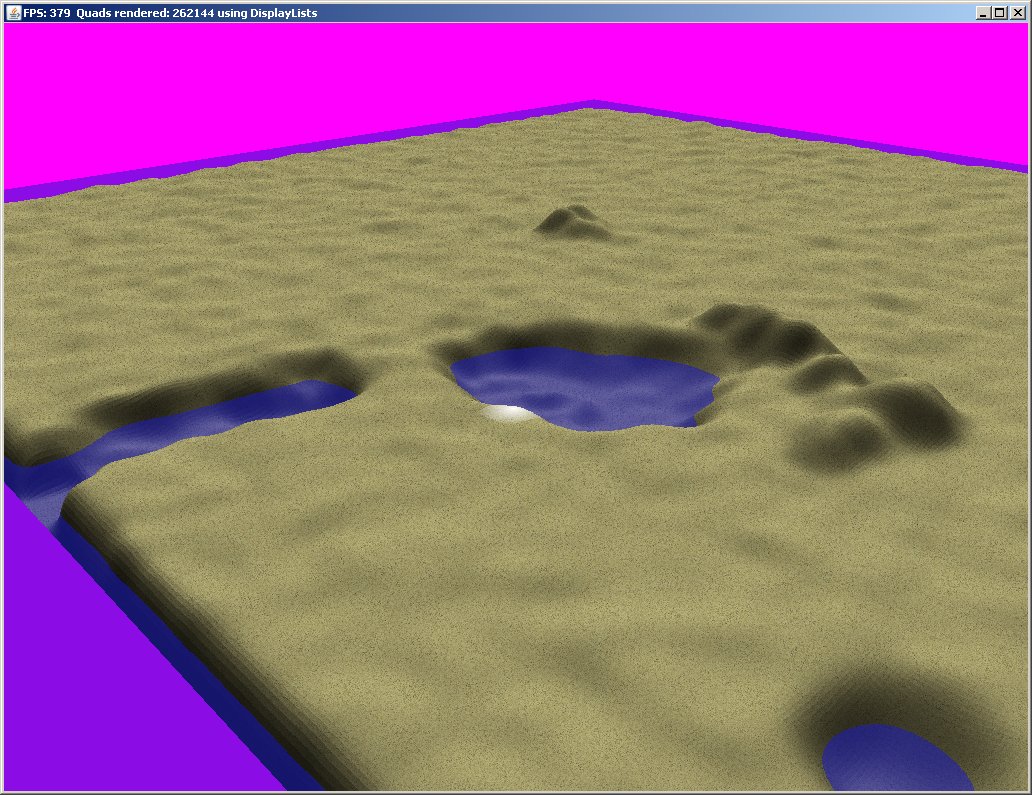

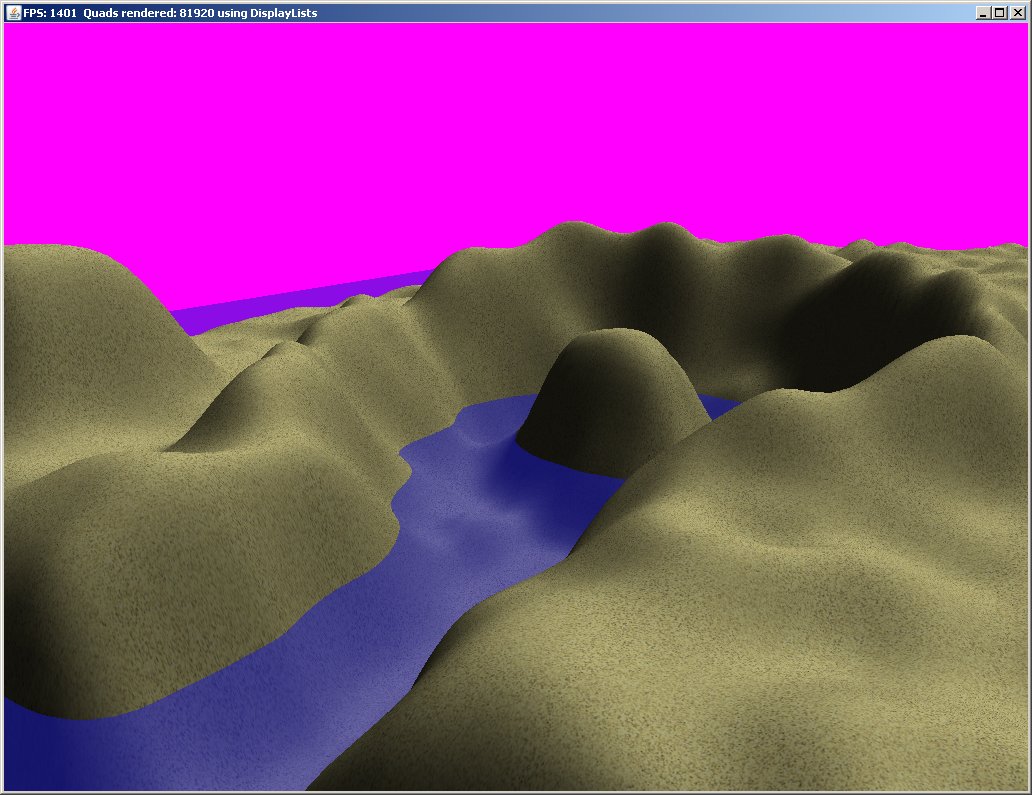

Water: Added a simple transparent water plane

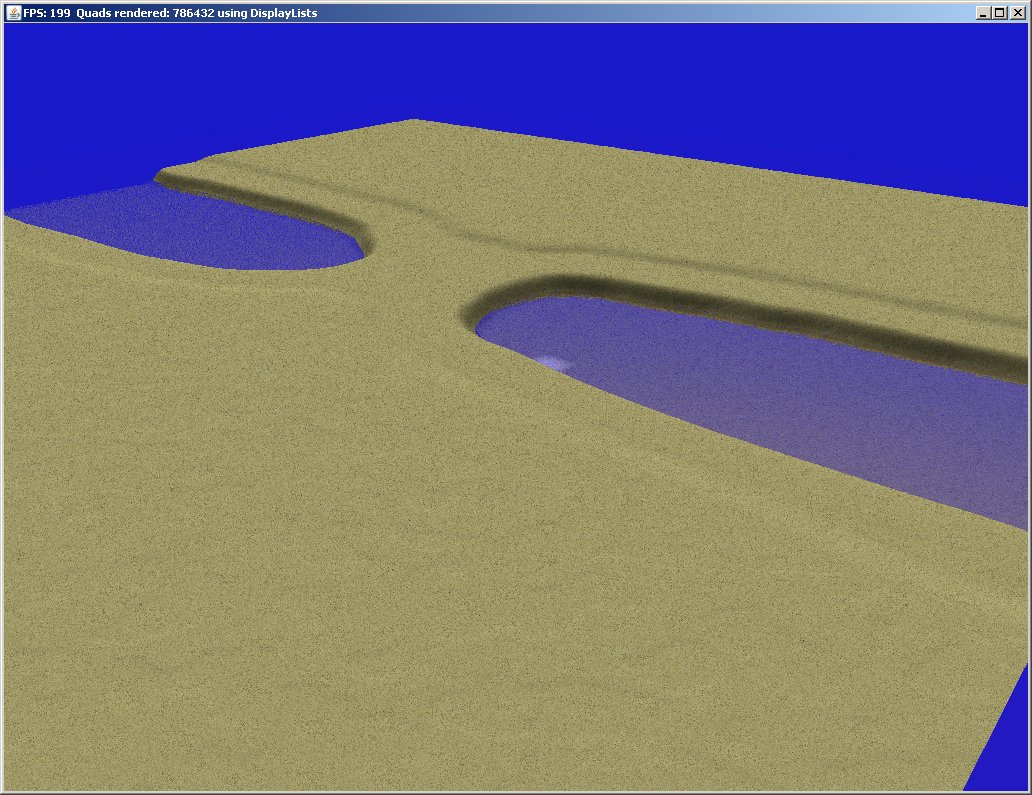

Lighting: Smoothed out Normals

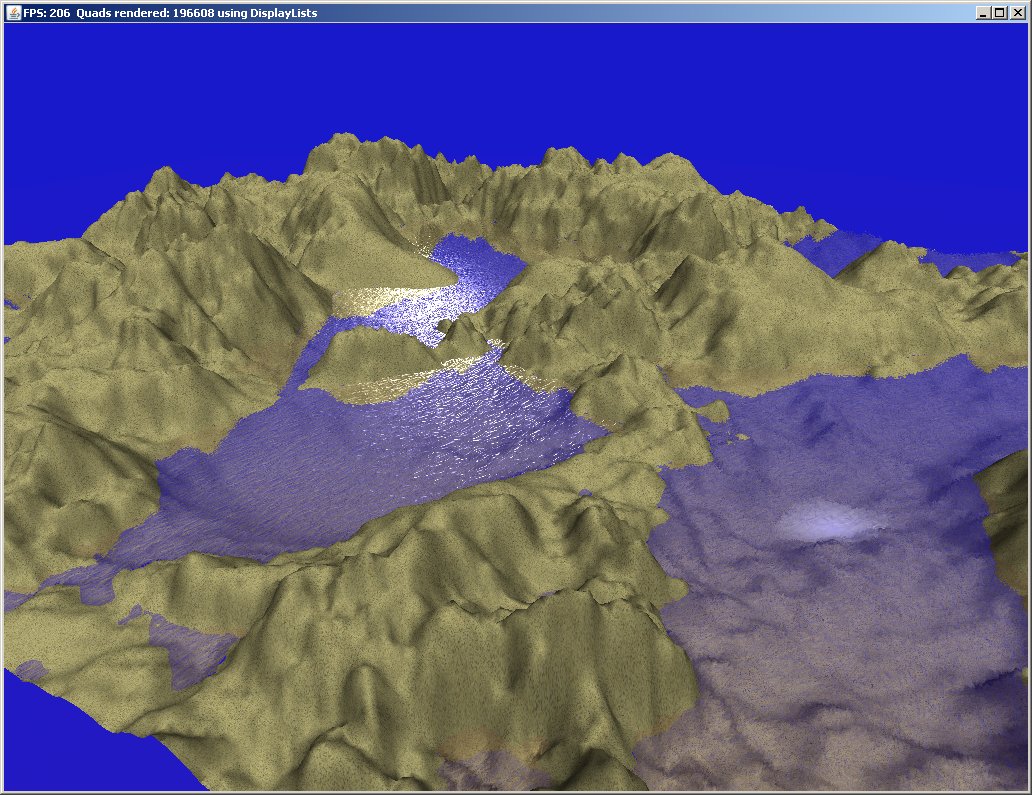

Water: Added Reflection map. Projective texturing an upside-down image onto the water plane.

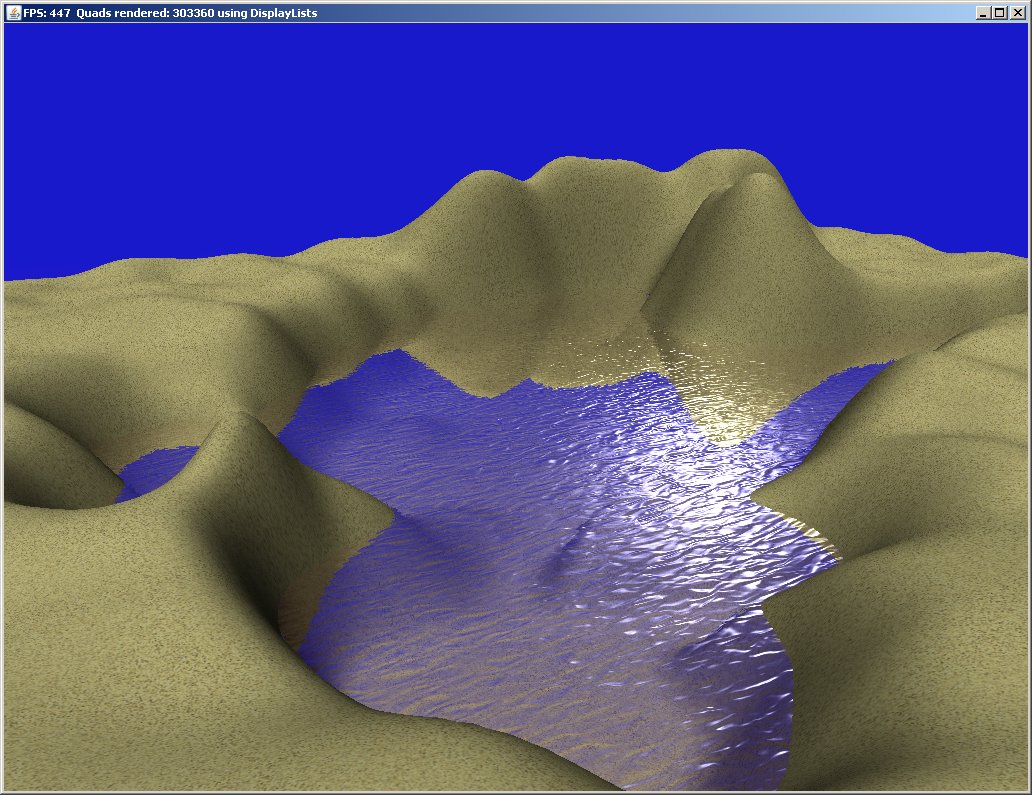

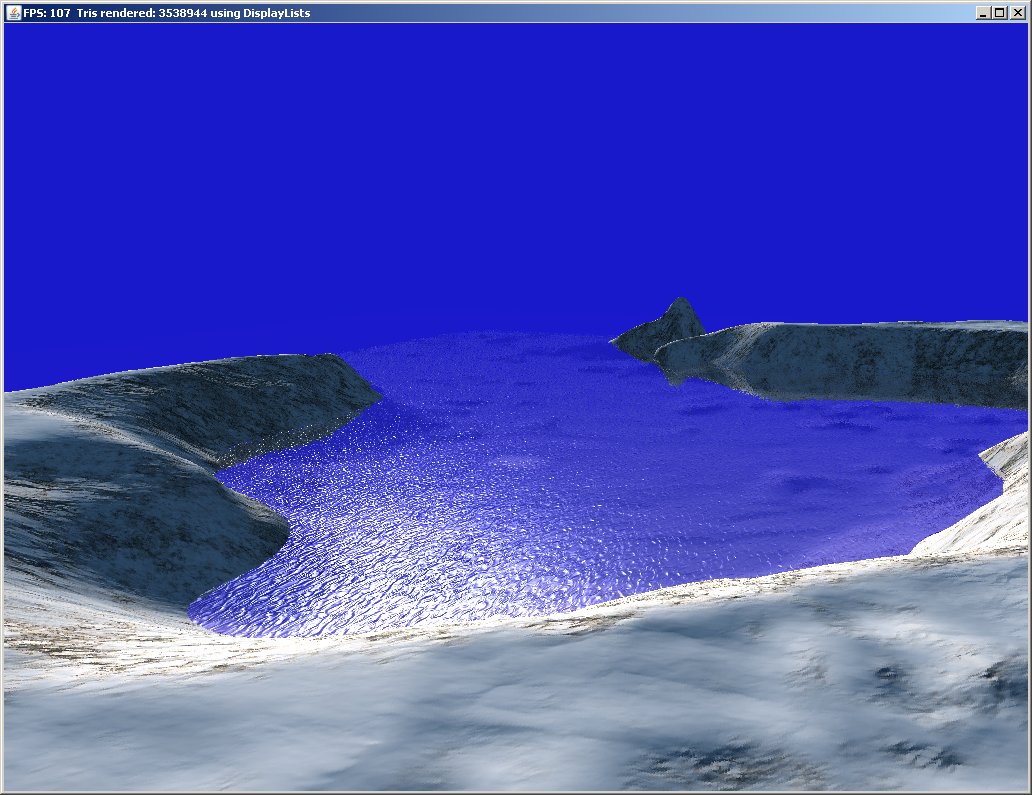

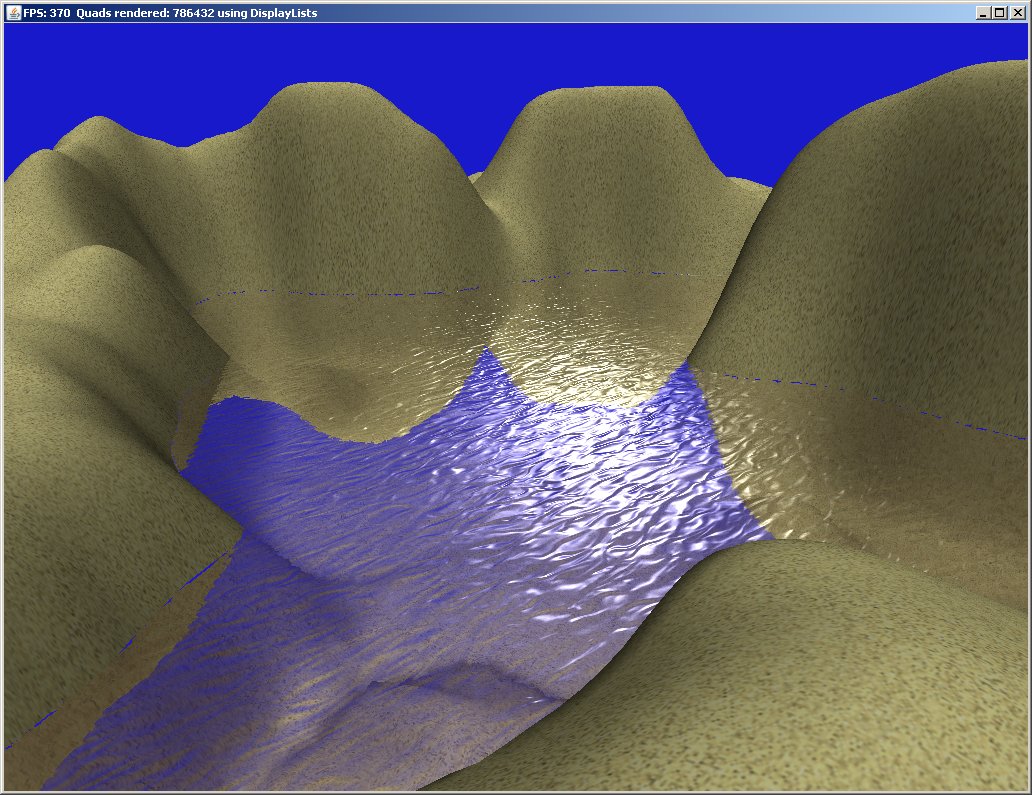

Water: Added Refraction map and Distorion. Projective texturing scene below water onto waterplane.
Blue border glitch visible
Blue border glitch fixed
Heightmap importing
Heightmap from Wikipedia ;)

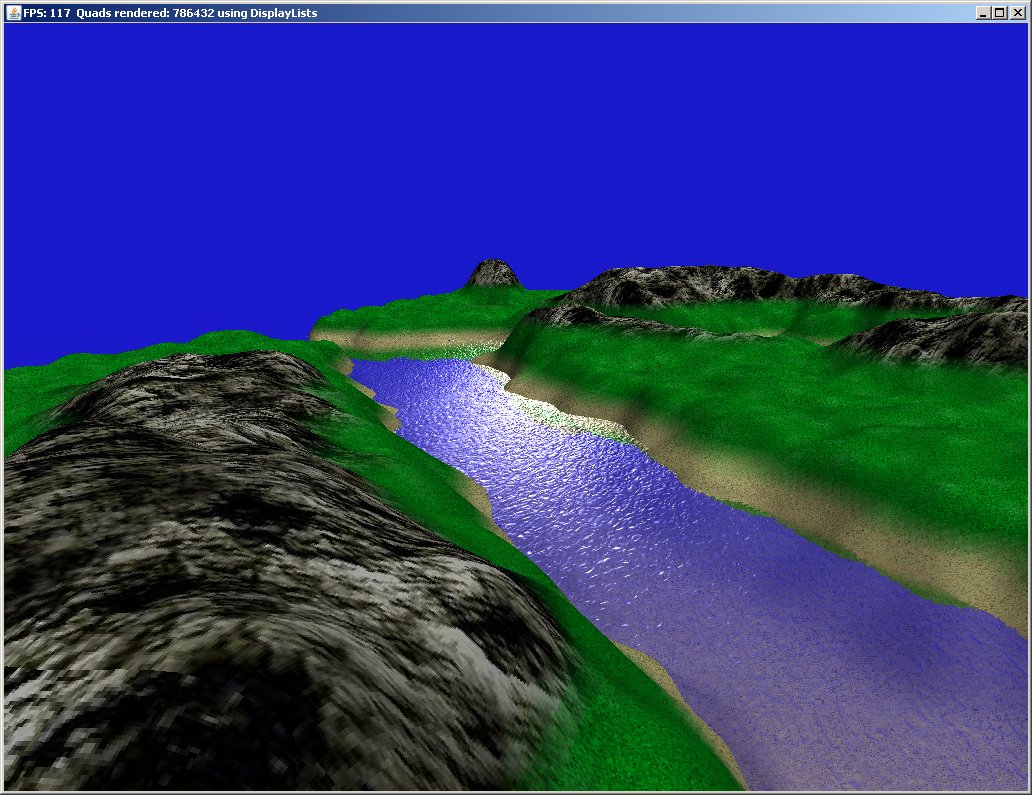

Simple Auto-Terrain-Texturing by specifying heightlevels and textures. Blending between levels.

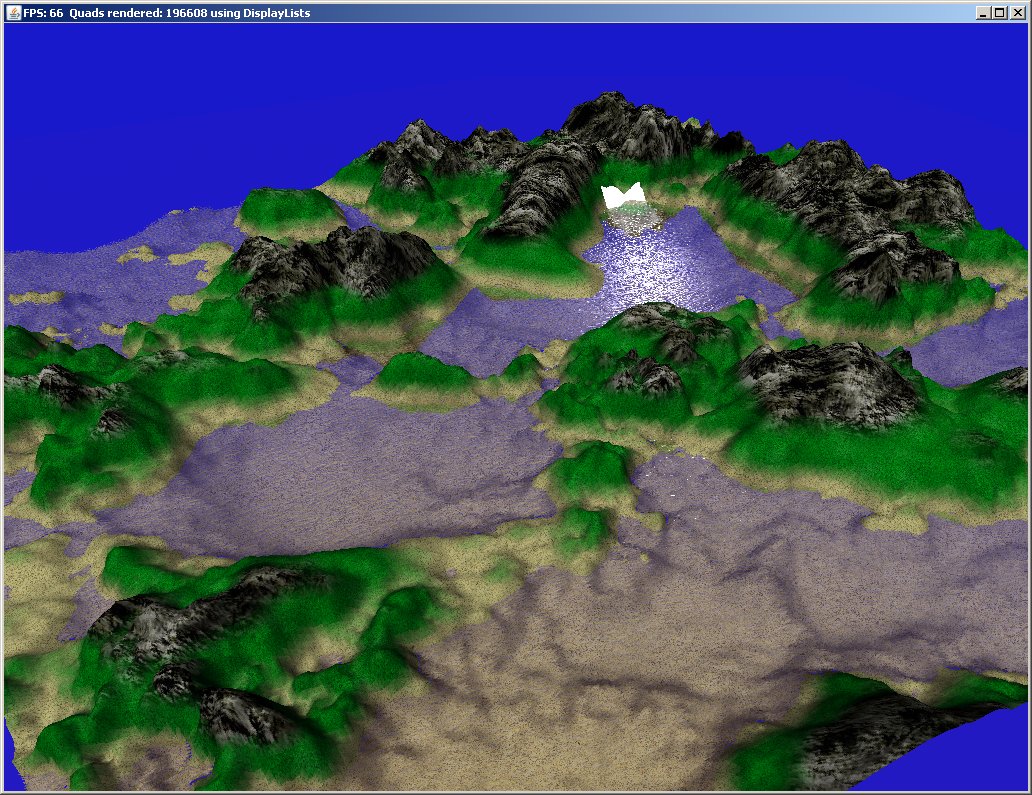

Wikipedia map, autotextured
Imported high-quality 200MB texturemap together with corresponding heightmap. Switched of own lighting, because lighting was baked into texturemap.
Switched to Trianglestrip rendering instead of Quads

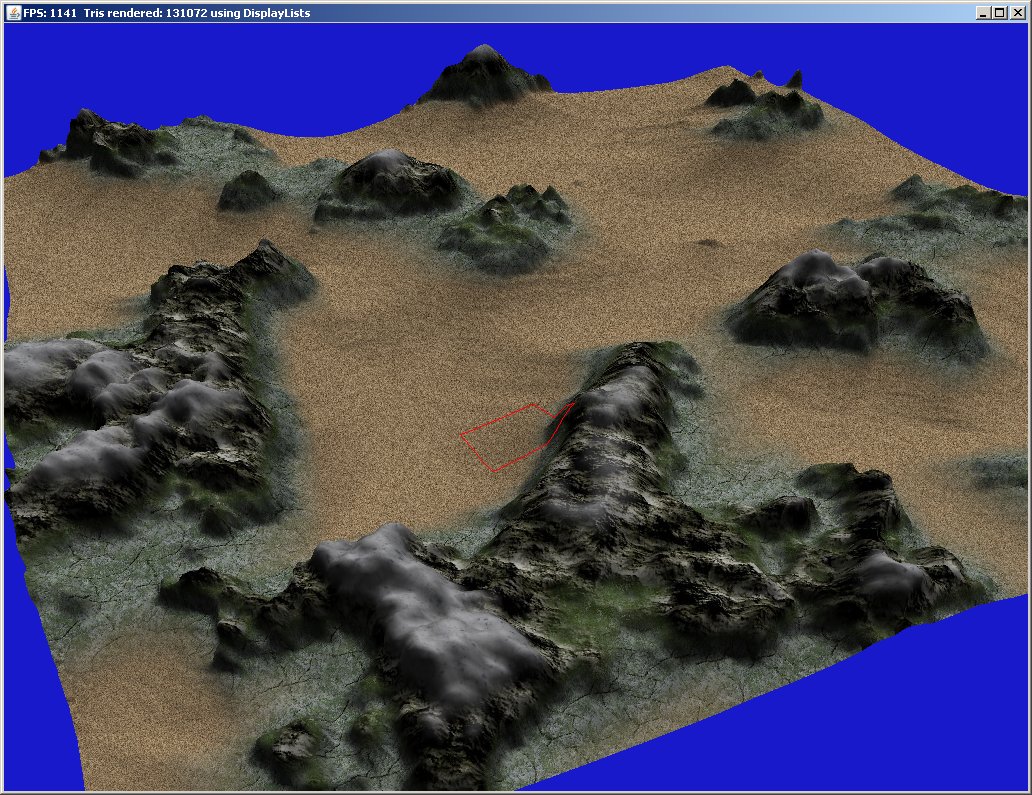

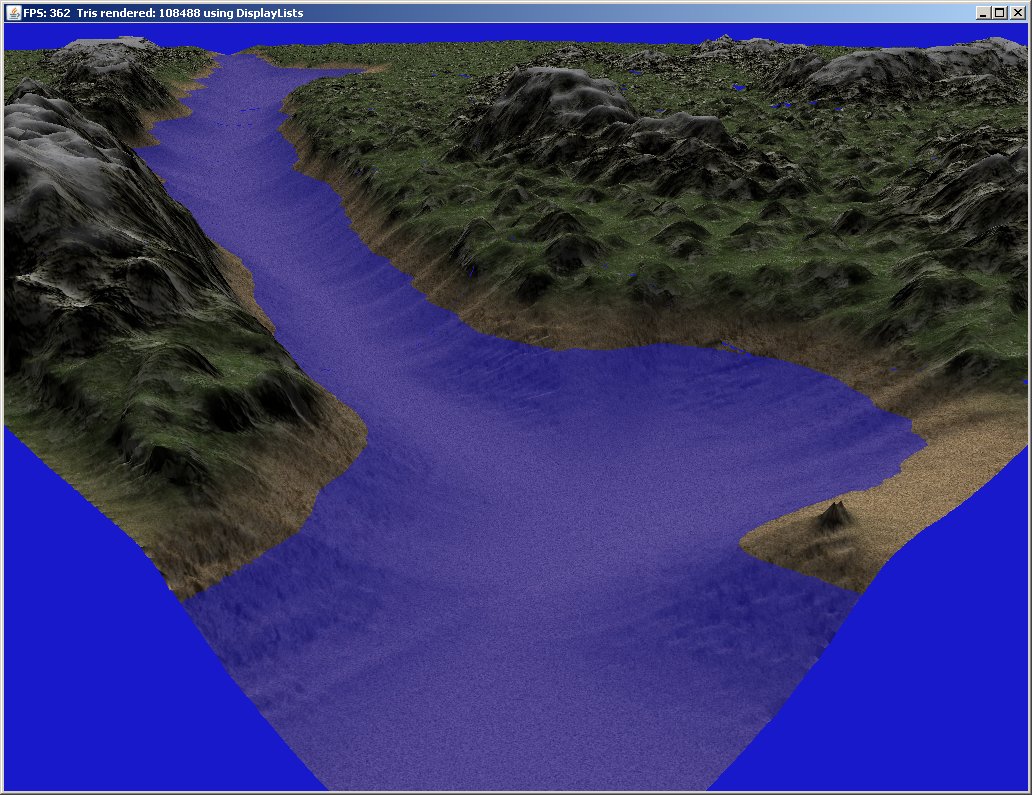

Hydraulic Erosion. Multistage autotexturing. New Brush rendering. Gouraud-Smoothed autotexturing.
Wikipedia map. Hydraulic eroded and autotextured

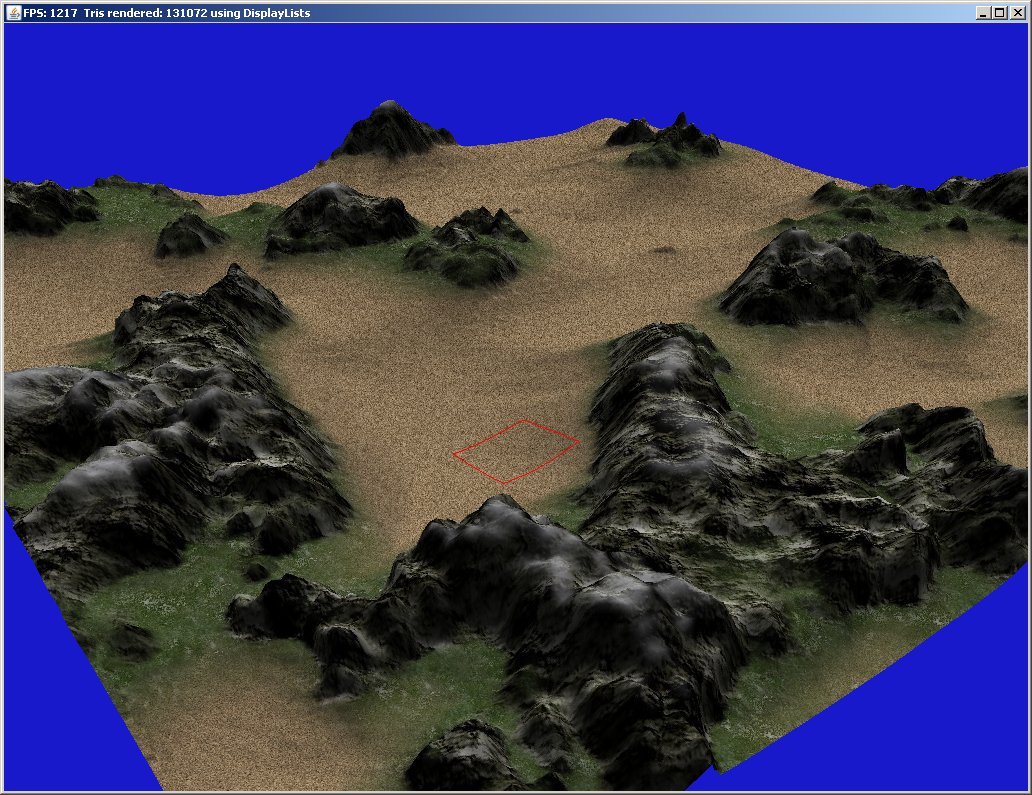

Expanded autotexturing based on gouraud-smoothed steepness values, used for blending a steep and flat texture for a specific heightlevel

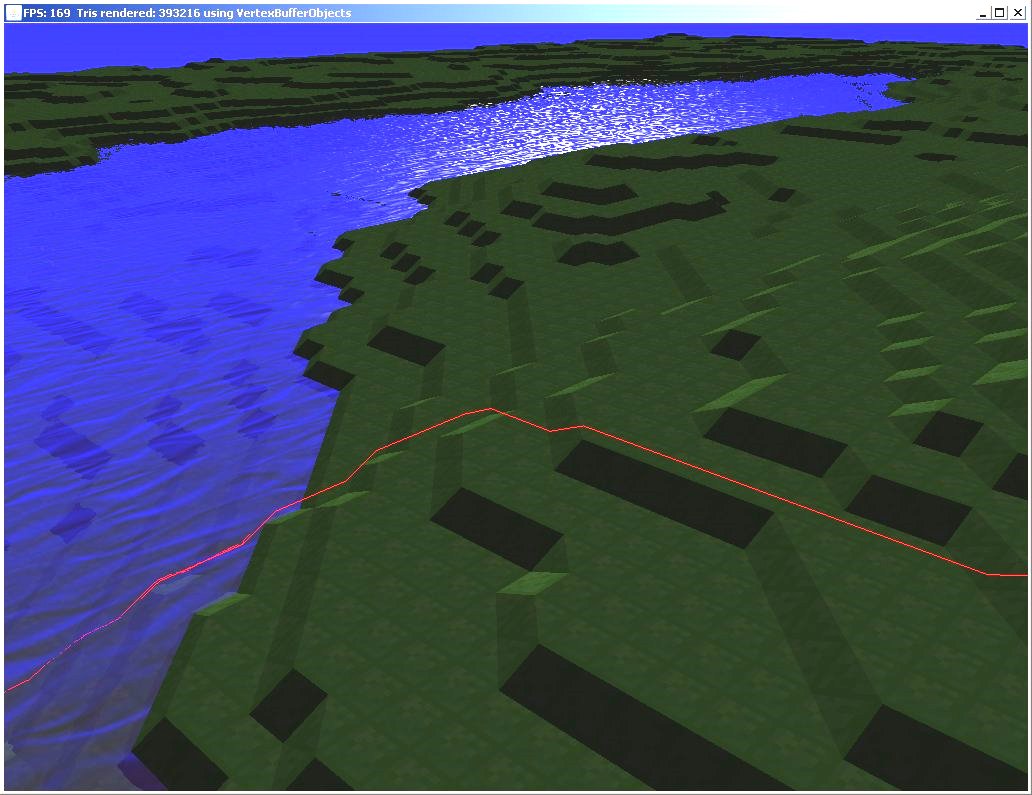

Experimenting with TTD'izing the map :)
Many speed improvements. 2048x2048 Heightmap with Blocksize of 64. FPS: DL-LOD 66, DL+LOD 360, VBO-LOD: 48, VBO+LOD: 255

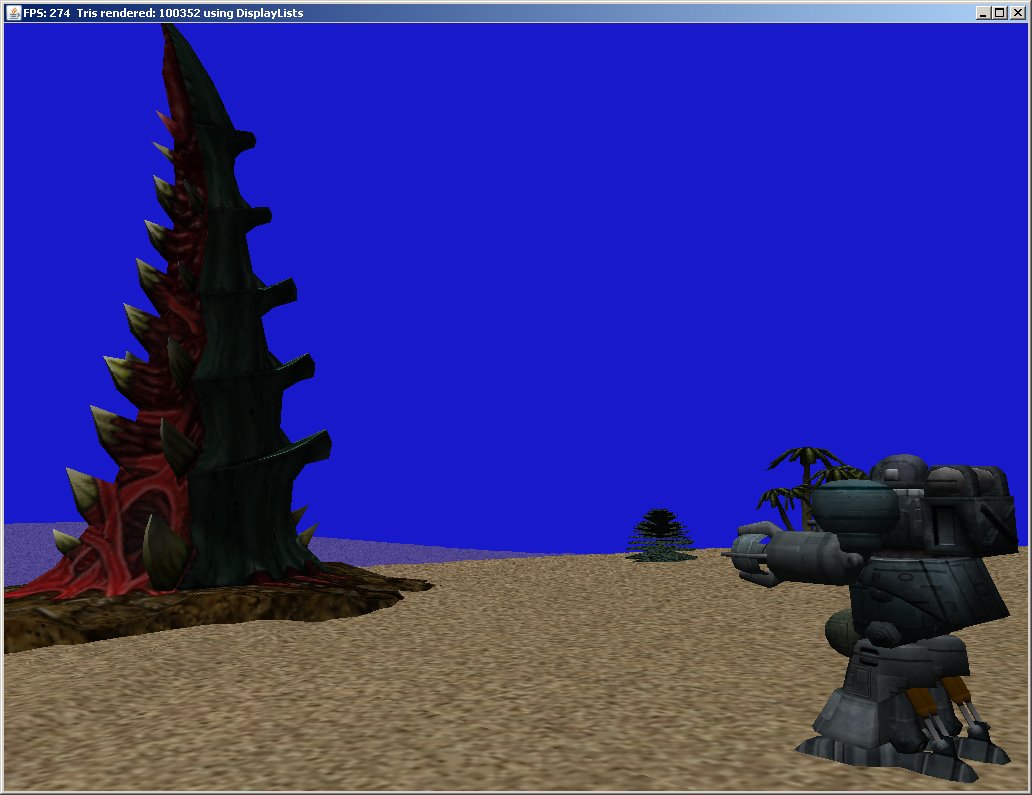

Implemented Loading and Rendering of .s3o models

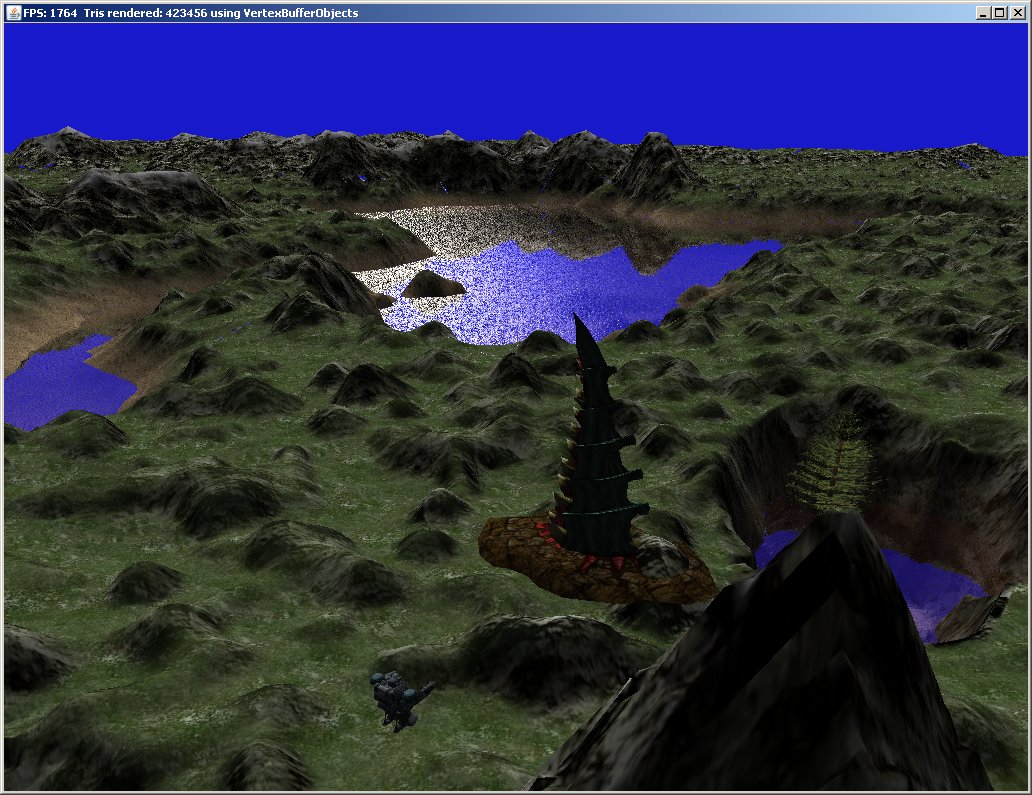

Added alpha to .s3o models. Speed improvements.

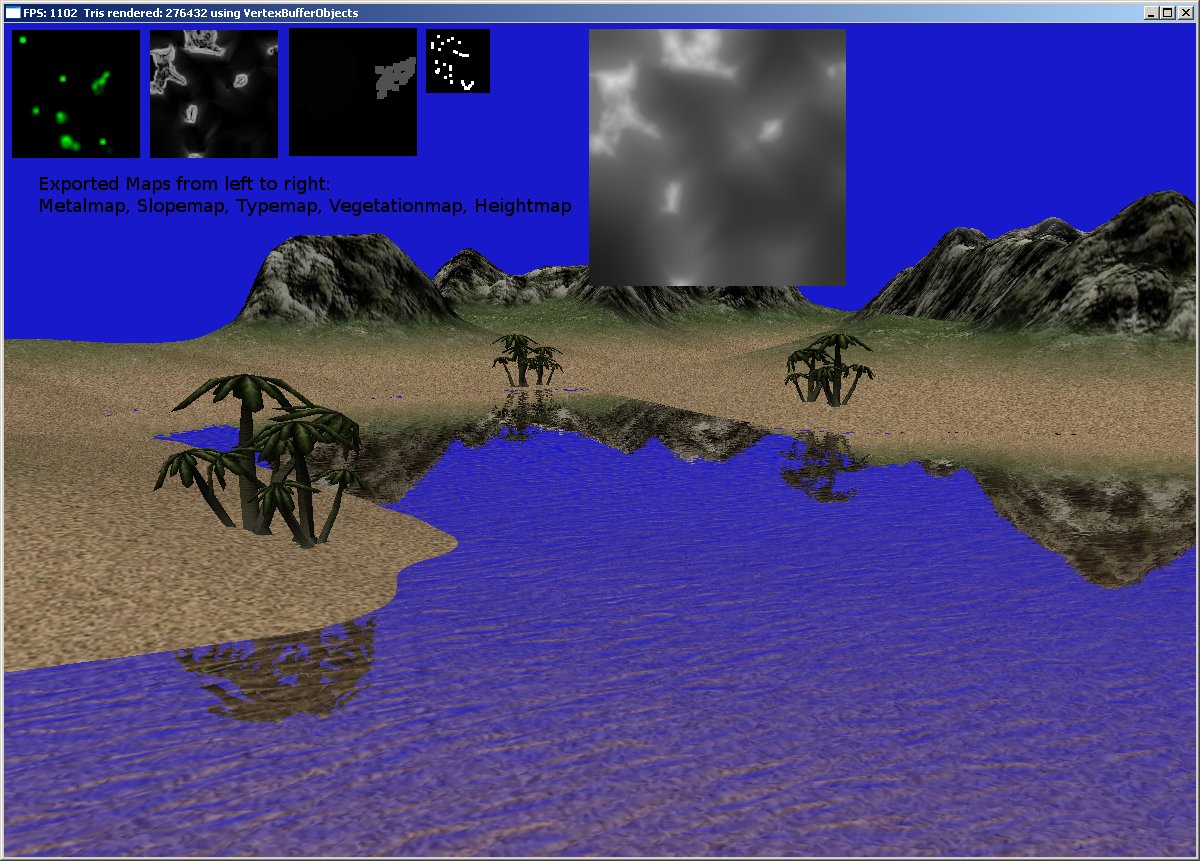

Many many things on editing side. Added Export/Import/Display/Edit of: Metal/Slope/Type/Vegetation/Feature/Texturemaps. Direct Export to Spring SM2 Mapformat. TDF import(Features). Switched to SWT.

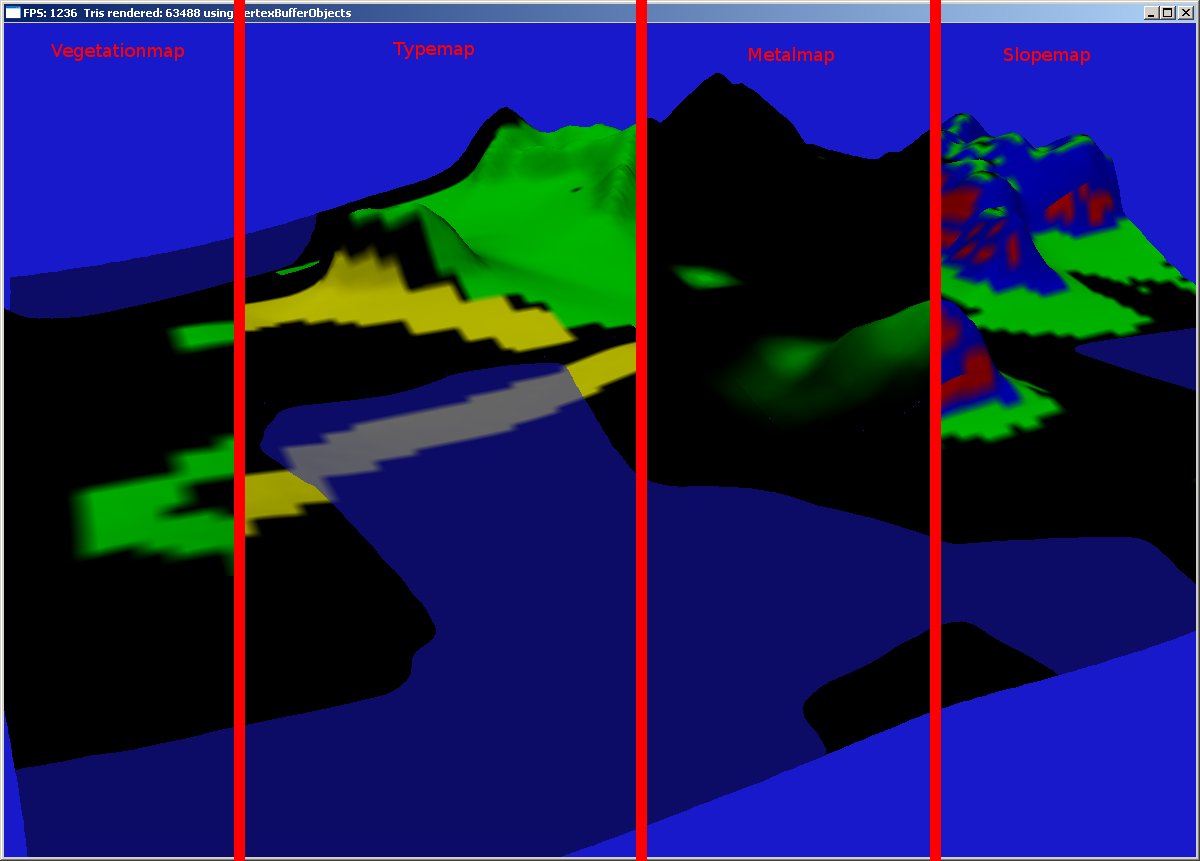

Different maps overlayed onto main rendering view.
Added Feature Selection dialog, with dynamic rendered feature images

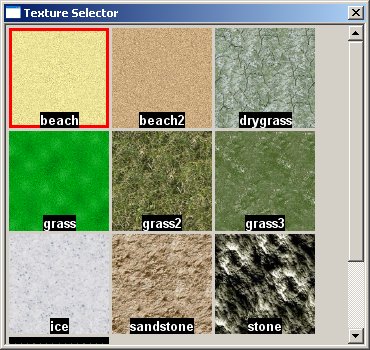

Added Texture Selection dialog

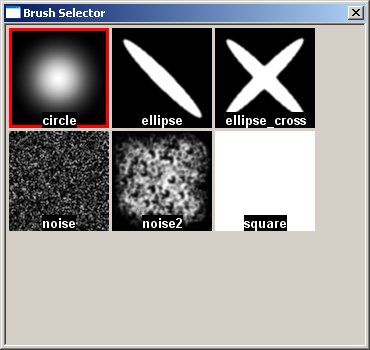

Added Brush Selection dialog
SM2 map import progress: heightmap of a very well known map (credits to the author)

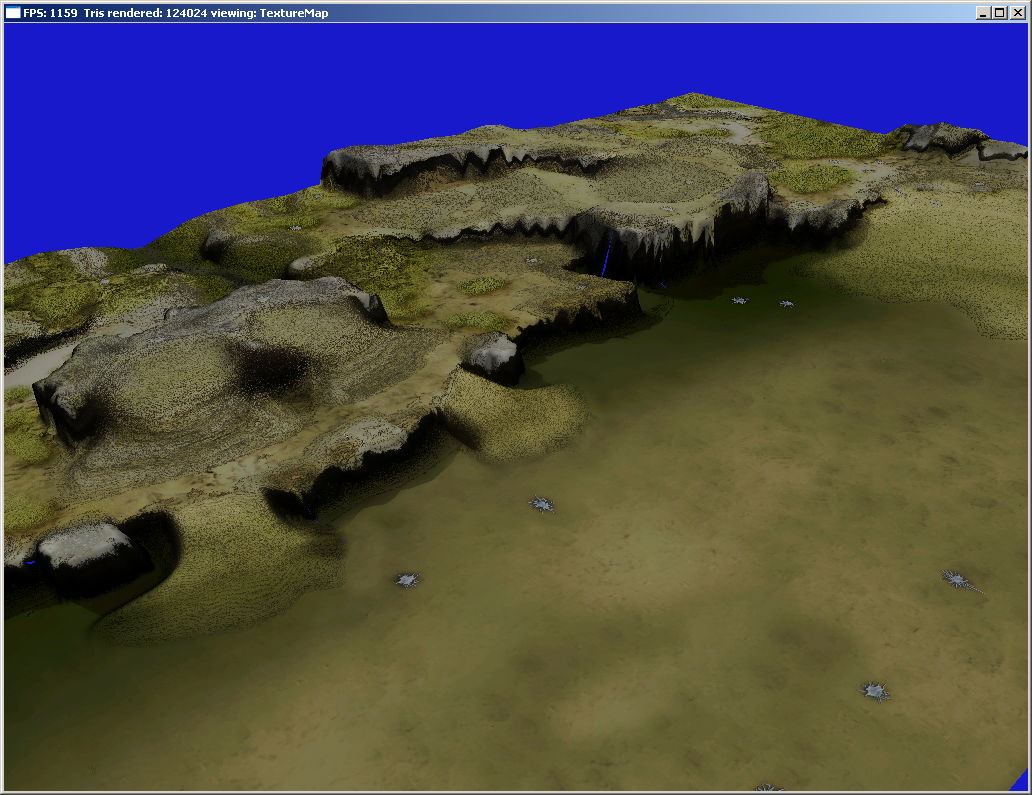

SM2 map import finished. heightmap, texturemap, metalmap, typemap, vegetationmap, (again credits to the author ;) )

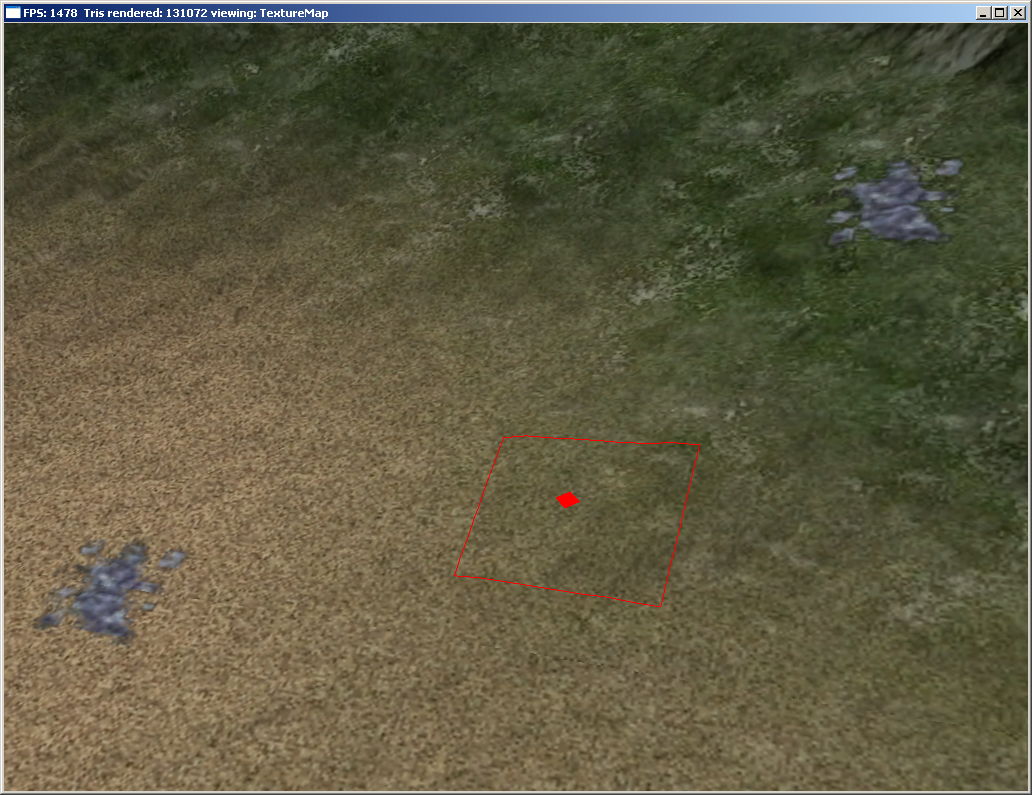

Texture stamping respects the alpha from loaded texture now. Used for shown metal-patches

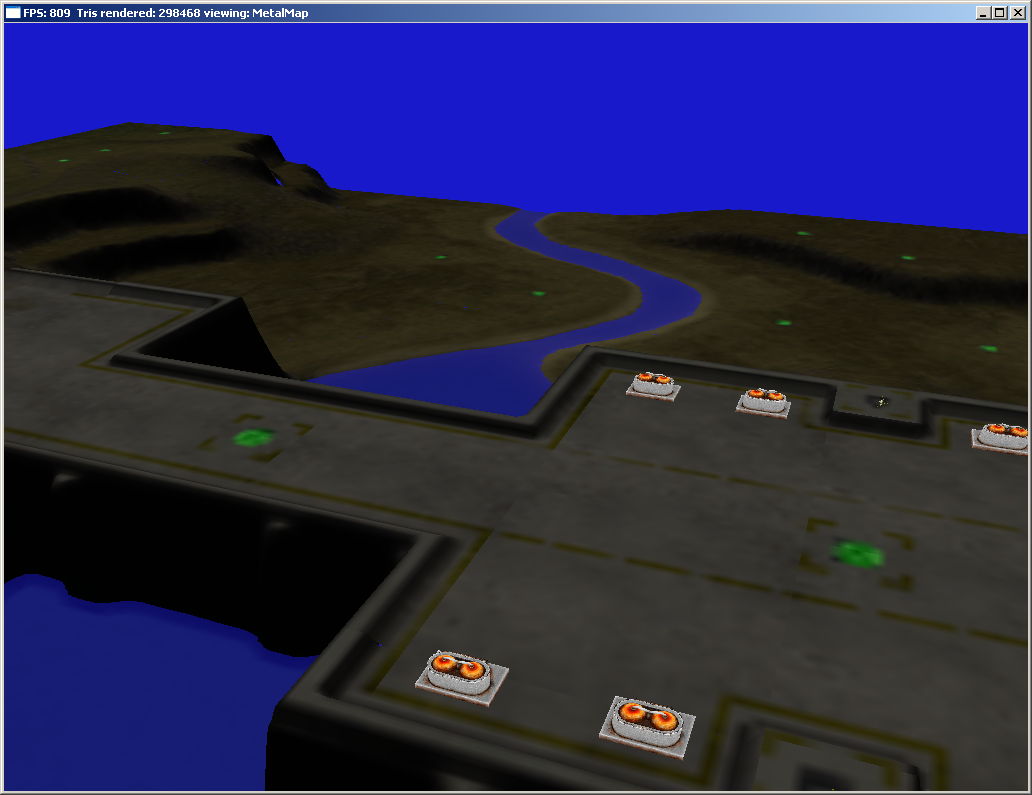

Option to Blend-in Texturemap into other Views. Image: Texturemap blended into Metalmap
The new startlogo, generously created by KaiserJ

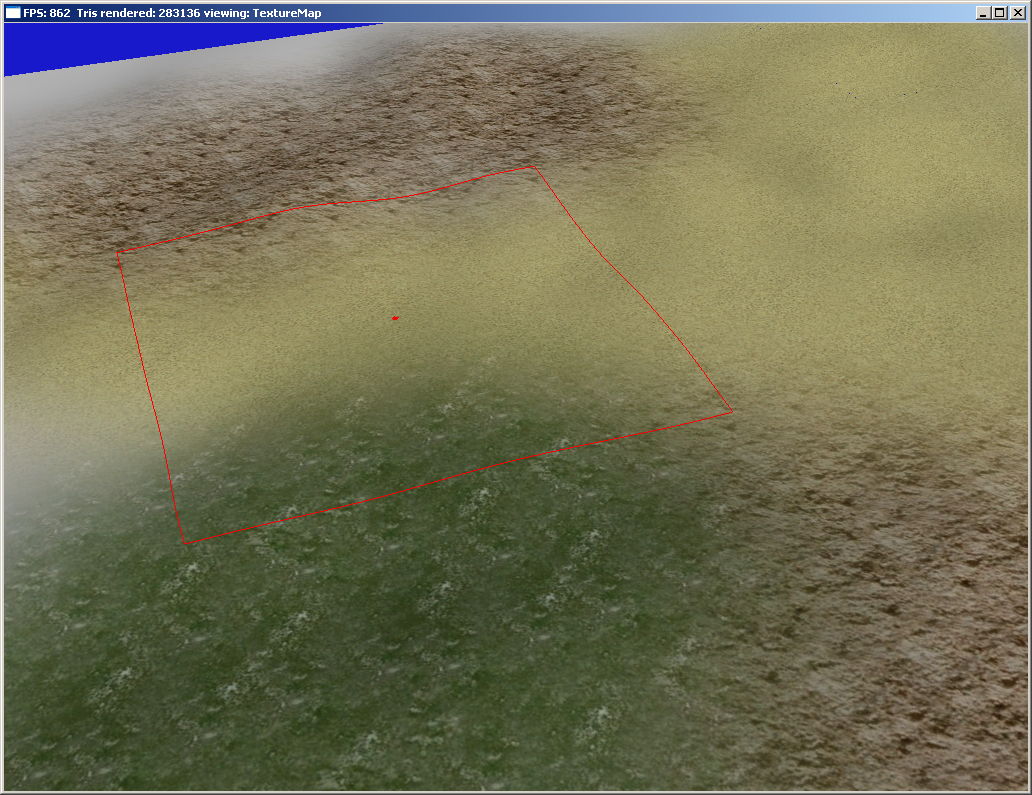

Implemented texture blending via brushes
Added Diamond-Square Terrain Generation
Added faster alternative Wet erosion

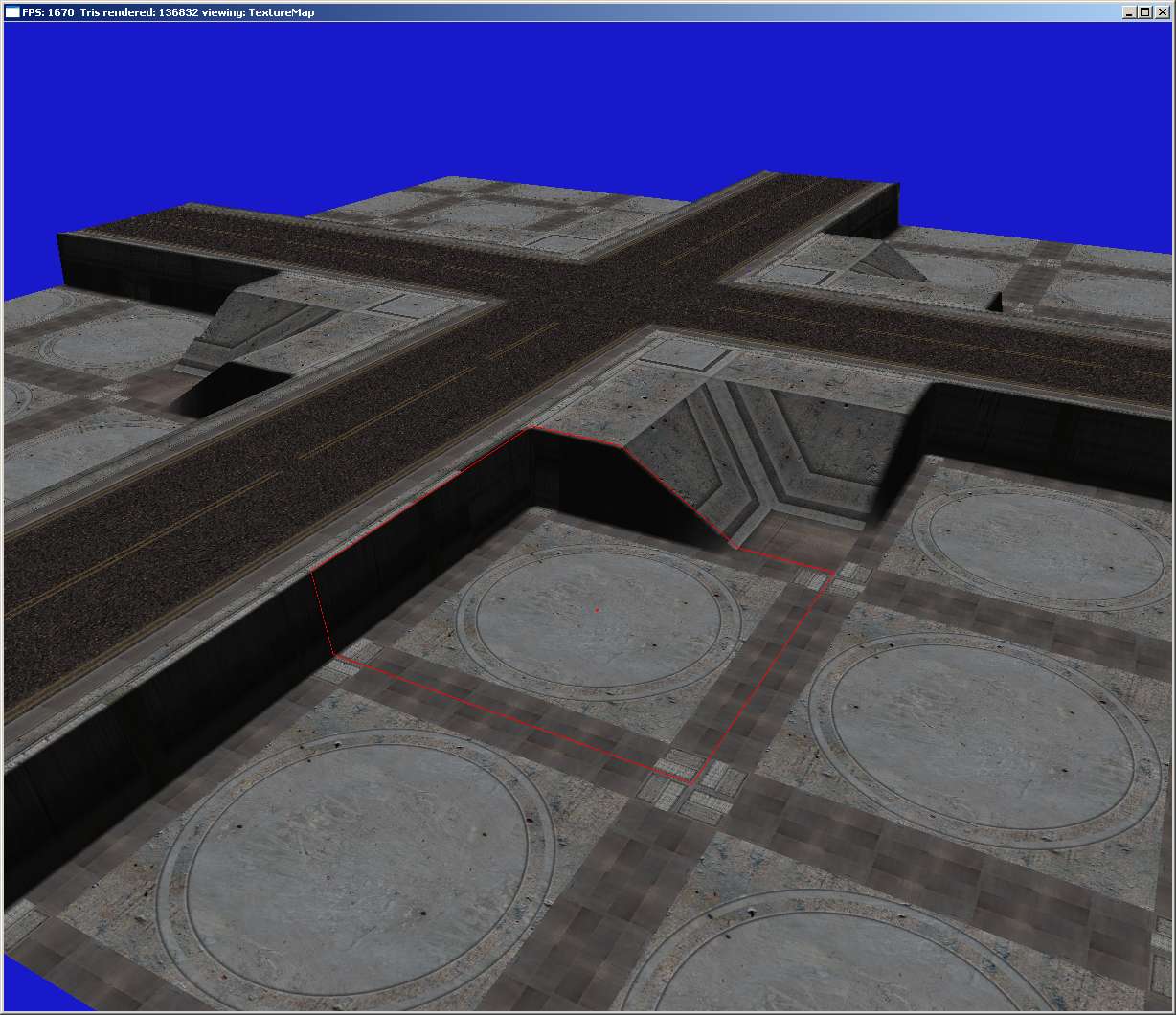

Added Prefab placement for textures and heightmap
Added Prefab rotation

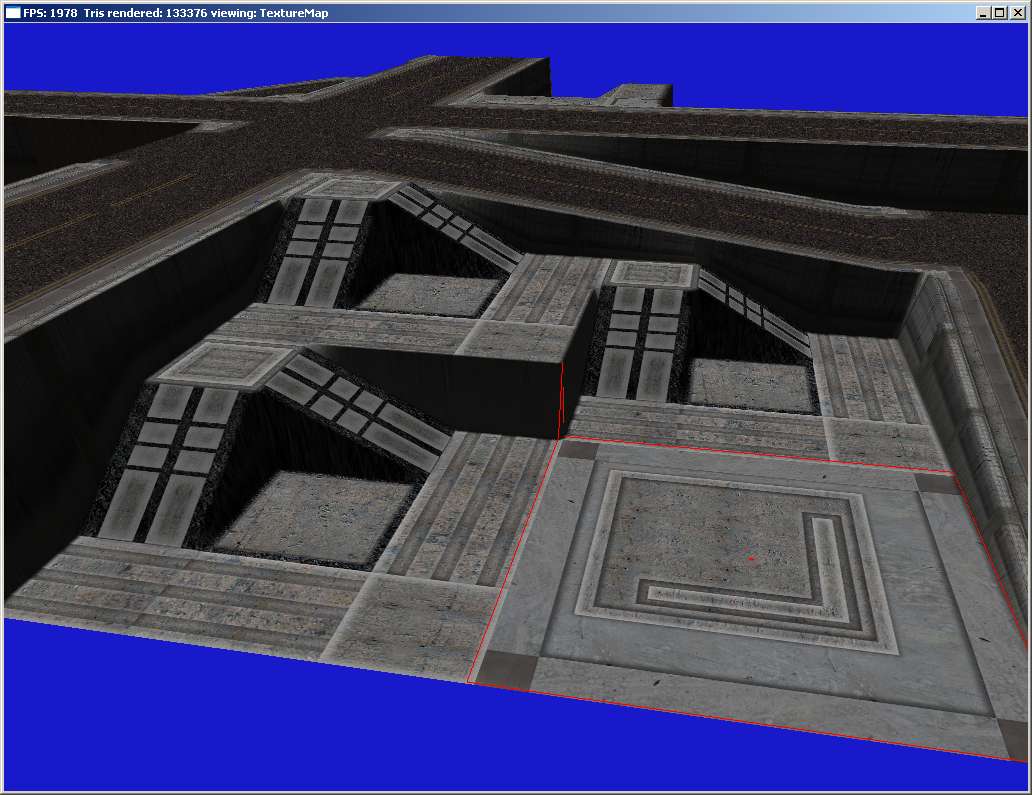

Showing multilevel Prefabs

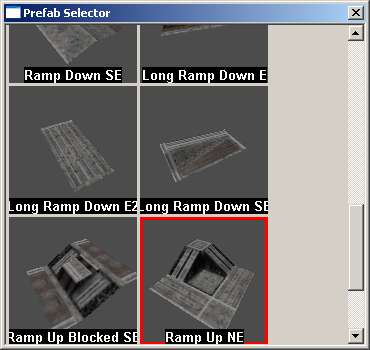

Added Prefab Selection Dialog
Added 16 bit Pattern loading. From left to right: 8bit blurred, 8bit original, 16bit blurred
